ADJ 32 HEX IP Panel

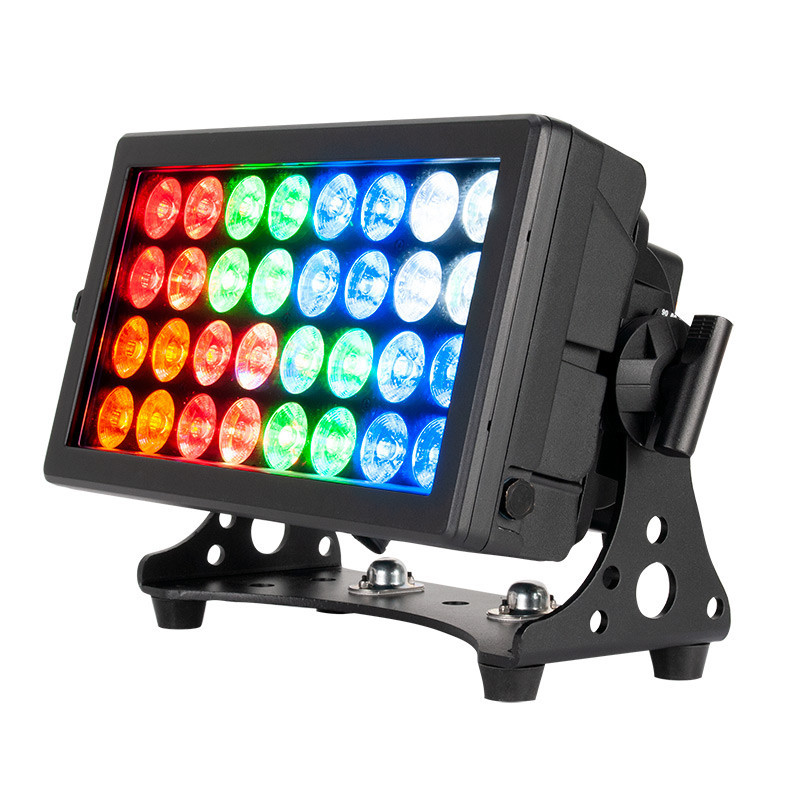

The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBAW+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame with a 32 degree diffusion filter to change the beam angle.

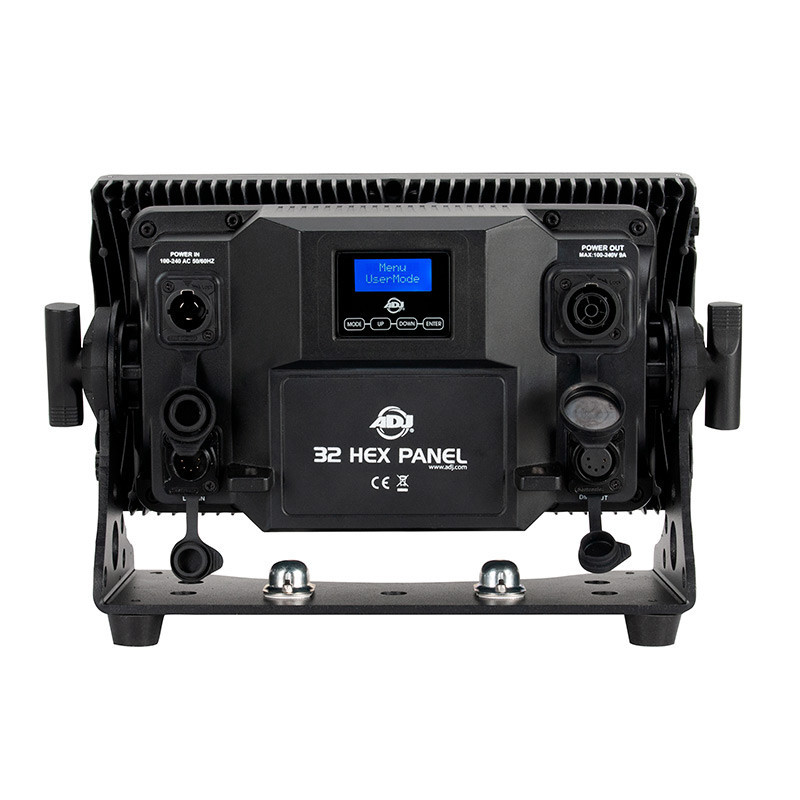

On the rear panel it features IP65 5-pin DMX In/Out connections, and IP65 Locking Power In/Out connections to daisy chain the power. Both the DMX and IP65 Locking Power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 32 HEX Panel IP is flicker free for film and broadcast, and has multiple DMX control modes, dimmer curve modes, and selectable gamma and LED refresh rate settings.



Specifications:


Source

•  Light Source: 32 RGBWA + UV LEDs (Red, Green, Blue, Amber, White & UV LED)
•  Individual LED wattage : 12W
•  Average LED lifetime :approximately 50,000 hrs.

Optics

•  Beam Angle: 24 degrees
•  Removable Magnetic Filter Frame with 32-degree diffusion filter (60-degree field angle)
•  Optional Barndoors available (order code 1237000206)

Control

•  5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Color Macro Mode      and DMX Control
•  8 DMX Modes: 6, 8, 10, 11, 16, 48, 57 & 96-channel
•  RDM compatible (Remote Device Management)
•  16bit Electronic Dimming: 0 - 100%
•  63 built-in Color Macros
•  Built-in programs with speed and fade time adjustments
•  8 individually controlled sections with Zone Control
•  5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
•  Gamma control : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
•  LED Refresh Rate control : 900Hz-25khz
•  LED pulse and strobe effect
•  4-button, DMX digital display on rear panel

Colors

•  RGBAW+UV Color Mixing

• Construction
•  Metal Housing
•  IP Rating : IP65
•  Convection cooling
•  Sure-lock heavy-duty locking bracket system (securely locks every 10-degrees)
•  Optional Omega Quicklock Bracket (order Code 9900007438 OmegaBracket 108mm)

Electrical

•  Multivoltage 100-240V 50/60Hz
•  Power Consumption: 298 W
•  Operating Temperature: from -15°C to +45°C

Connections

•  5-pin Locking IP65 DMX connectors
•  IP65 Locking Power In/Out connections

Dimensions

•  Dimensions (LxWxH): 354x229x165,5mm
•  Weight: 11 kg.
